TOPDON TC005 Thermal Imager Review Advanced Dual-Camera with Long Battery Life

Description

Highlights of the Thermal Imaging Experience

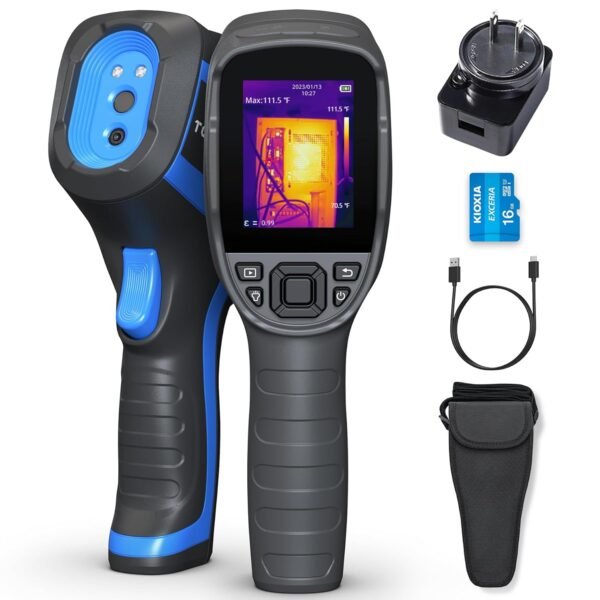

Using the TOPDON TC005 256 x 192 IR High Resolution Dual-Camera Thermal Imaging Camera has been quite an eye-opener for me. The dual-camera system combining a 2MP visible light lens with an infrared sensor boasting 259 x 192 resolution delivers images that are crisp and detailed enough to spot temperature anomalies with ease. What really caught my attention was the thermal sensitivity of ≤40mK and the 20 Hz refresh rate, which makes scanning dynamic scenes feel smooth and responsive, unlike some laggy thermal cameras I’ve tried before. This device truly stands out in balancing high-resolution imaging with practical usability for industrial, security, and outdoor applications.

One feature I found particularly useful is the four image modes: pure thermal, visible light, dual-light integration, and picture-in-picture. Switching between these modes on the fly allowed me to cross-reference thermal data with real-world visuals, which is invaluable during inspections. Plus, the seven color palettes provided a range of options to interpret temperature variations more intuitively depending on the environment or the task at hand.

Perks That Make This Thermal Camera a Handy Tool

• Extended temperature range from -4°F to 1022°F covers everything from chill inspections to high-heat industrial checks.
• The three temperature measurement modes (central point, highest, lowest) work reliably and accurately, with a margin of error around ±3.6°F or ±2%, which is solid for professional and hobbyist needs.
• Automatic tracking and alarm functions that lock onto temperature extremes make it effortless to focus on critical hotspots or cold spots without constantly monitoring the screen.
• The 12-hour battery life is impressive, especially considering it only takes about 4 hours to recharge. I didn’t have to worry about the device dying mid-inspection, which is a relief for fieldwork.
• IP54 protection and 2-meter drop resistance make it rugged enough for rough environments without having to baby it too much.

Areas for Improvement That I Noticed

Despite its strengths, this thermal imager isn’t without flaws. The 2.25-pound weight might not sound like a lot, but after holding it for extended periods, my wrist started to fatigue. For professionals who need to carry such a device all day, this could be a factor to consider. The screen brightness under direct sunlight could also be better; sometimes, I had to shade the screen to see thermal details clearly.

Another quirk is the USB-C connection for PC analysis. While it’s great that the camera supports real-time streaming and offline data review with 3D imaging, the software can be a little clunky and not the most intuitive, especially for users who are not tech-savvy. Exporting data reports requires some patience, and the manual could be more comprehensive in guiding through these features.

Value Proposition of the Dual-Camera Thermal Imager

Considering all the features packed into this handheld device, it offers great value for money. The combination of high-resolution infrared imaging with visible light and robust temperature measurement capabilities makes it versatile across many fields such as industrial inspection, fire detection, security monitoring, and even outdoor activities like hunting. It’s rare to find a thermal imager with this level of precision, long battery life, and durability at this price point.

The inclusion of a 16GB memory card, USB-C cable, 5V charger, and a protective bag in the package is a thoughtful touch, meaning you can start using it immediately without needing extra accessories. This all-in-one approach enhances its appeal for users who want a reliable tool without hunting for compatible peripherals.

Product Comparisons with Popular Thermal Imagers

Compared to other thermal imagers like the FLIR E6 or Seek Thermal Compact, this model holds its own in several key areas. The resolution and thermal sensitivity here are quite competitive, though FLIR’s higher-end units might edge out slightly in image details and software polish. However, the dual-camera setup with visible light on this device offers more flexibility than many rivals that provide infrared only.

Battery life is another strong suit; while some competitors require frequent charging, this one’s 12-hour endurance ensures longer work sessions, especially important in field inspections. The temperature range is also broader than many in its class, making it suitable for hotter environments.

On the downside, unlike some FLIR models that come with more refined PC software and mobile app integration, the software experience here can feel less seamless. Also, the weight and bulkiness might be a deal-breaker for users prioritizing portability.

Functional Design and Ease of Use

The ergonomics of this handheld thermal imager are decent, featuring a well-balanced grip and straightforward button layout. Navigating through settings like color palettes, measurement modes, and image capture is intuitive enough, though newcomers might need a few minutes to get accustomed. The touchscreen responsiveness is average, but physical buttons compensate well during use with gloves.

One aspect I appreciated is the ability to record videos and take snapshots directly on the device, which simplifies documentation without needing to transfer files immediately. Plus, the expandable memory support beyond 16GB is a smart design choice for heavy users.

Limitations in Real-World Applications

Despite being sturdy, the device’s IP54 rating means it’s splash-resistant but not fully waterproof, so caution is needed during wet weather or dusty conditions. The 2-meter drop resistance is reassuring, but dropping it on very hard surfaces repeatedly might still cause damage.

Another limitation I encountered is the absence of wireless connectivity options like Wi-Fi or Bluetooth, which makes data transfer a bit less convenient than some newer models that offer app syncing for instant sharing and analysis. This could slow down workflow in fast-paced environments.

Drawbacks Worth Considering

• The weight can cause fatigue during prolonged handheld use.
• Screen visibility struggles under bright sunlight, requiring shading.
• PC analysis software is less user-friendly and can be clunky.
• No wireless data transfer options, limiting convenience.
• IP54 rating means it’s not suitable for heavy rain or submersion.

Using this thermal imaging camera alongside colleagues revealed that while it excels in image quality and battery life, some of the software and ergonomic quirks might not suit everyone, especially those needing ultra-portable or app-integrated solutions. However, its robust temperature range and dual-camera versatility make it a strong contender in many professional and hobbyist scenarios.
