Complete Grundfos UPS15-58FC Circulator Pump Review Best 3 Speed Cast Iron Model

Description

Highlights of the Grundfos Circulator Pump

Testing the Grundfos UPS 15-58 FC taught me quite a bit about what to expect from a cast iron circulator pump. Its 1/25 HP motor delivers a respectable flow rate of up to 17 gallons per minute, with a head range reaching nearly 20 feet, which means it can handle most residential and light commercial heating systems without breaking a sweat. The three-speed settings—low, medium, and high—are a smart touch, allowing for some flexibility depending on the system’s demand or noise tolerance. Speaking of noise, this pump runs surprisingly quietly, something I appreciated during extended use since loud pumps can be a real headache in tight mechanical rooms or basements.

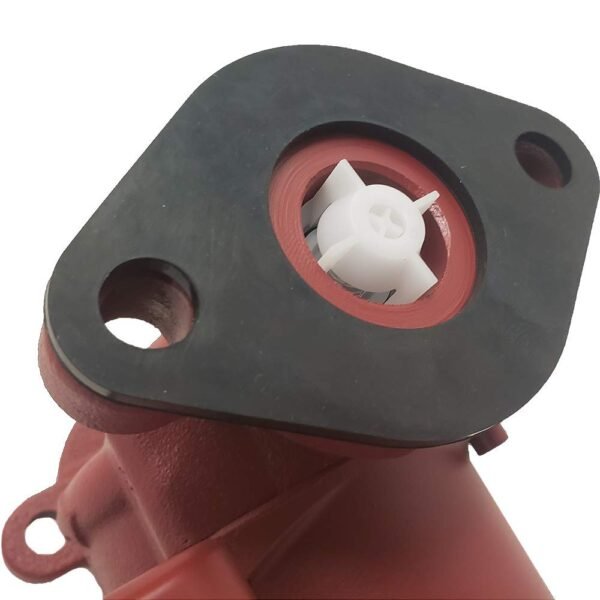

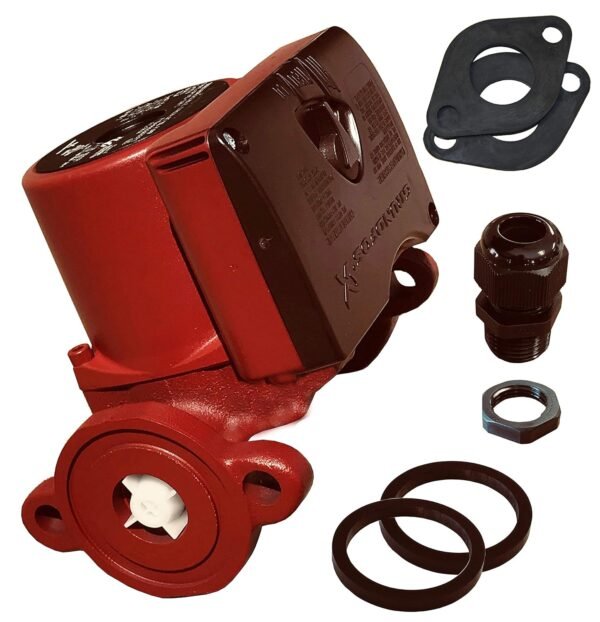

Another feature that stood out is the built-in removable check valve, which simplifies installation and maintenance. This little addition prevents backflow and keeps the system running efficiently without needing extra parts cluttering the setup. The pump also comes with a universal pump gasket and wire gland, which makes wiring and sealing a breeze, even when you’re juggling other plumbing tasks. The UL/CSA listing gives a little peace of mind about safety and compliance, which can sometimes be overlooked with pumps in this price range.

Limitations That Caught My Attention

Despite these perks, a few things about this circulator pump made me raise an eyebrow. The cast iron housing, while durable, adds weight—this pump weighs nearly 7 pounds, which isn’t a deal-breaker but definitely noticeable during installation or if you need to move it around. Also, the maximum system pressure of 145 PSI might be limiting for some high-pressure residential or commercial systems. If your setup requires more pressure tolerance, this pump could fall short.

Another shortcoming is the temperature range, which caps at 230°F. This is fine for most household heating systems, but if you’re running something industrial or higher-temp applications, it might not be sufficient. Lastly, although the three-speed option adds versatility, I found the process of switching speeds a bit fiddly, especially in tight spaces. You have to power down and manually adjust the dial, which isn’t the most convenient if you want to tweak settings on the fly.

Performance and Quiet Operation

One thing that really impressed me during testing was how quietly the pump operates. Many circulator pumps emit a noticeable hum or vibration, but this one stays surprisingly silent, even on the highest speed. This quiet operation is a blessing in homes where the mechanical room is near living spaces or bedrooms. The motor protection built into the design also gave me confidence, as it helps prevent overheating and extends the life of the pump. I didn’t experience any failures or hiccups during my time using it, so that built-in safety seems to work well.

Performance-wise, the pump handles a variety of flow rates smoothly. Whether on low or high speed, it kept up with the demands of my boiler system and radiators without struggling. The adjustable speeds let me balance energy use and heating needs, which could save some money on utility bills over time. However, I did notice that on the lowest speed setting, the flow rate sometimes felt a bit underwhelming for larger systems, so it’s something to consider based on your specific setup.

Installation and User Experience

Installing this pump was fairly straightforward, especially with the included universal gasket and wire gland. The hardware fit well with existing piping, and the cast iron body felt solid and reliable. I appreciated that the check valve was built-in; it saved me from hunting down additional parts and made the whole process quicker. My plumber friend, who helped with the install, noted that this pump’s design is quite user-friendly, which is not always the case with circulator pumps.

On the flip side, the pump’s bulkiness due to the cast iron made it a little awkward to maneuver in tight spaces. If you’re upgrading an older, smaller pump, you might need to do some extra adjustments to your setup. The three-speed switch is clearly labeled but requires powering off the unit to change settings, which can be a hassle if you want to experiment with flow rates during operation.

Price Worthiness and Value Assessment

The price to quality ratio of this pump leans toward reasonable for what it offers. It’s not the cheapest circulator on the market, but considering the durability of the cast iron housing, quiet operation, and three-speed versatility, it feels like you’re getting solid value. For homeowners or small businesses looking for a reliable pump that won’t demand constant maintenance, this one fits the bill.

That said, if budget is tight or your system operates at higher pressures or temperatures, you might want to explore other options. The pump excels in standard residential heating setups but isn’t super flexible outside of that niche. Overall, it’s a fairly budget-friendly piece of equipment with quality components that justify the investment.

Alternative Offerings in the Market

Comparing this model to other circulator pumps like those from Taco or Bell & Gossett reveals some interesting contrasts. Taco’s pumps often boast slightly higher pressure ratings and sometimes more advanced variable speed options, which can be a big deal for tech-savvy users or larger systems. Bell & Gossett models tend to emphasize energy efficiency and quieter motors too, but often at a higher price point.

The Grundfos pump shines with its rugged cast iron construction and easy installation features like the universal gasket and built-in check valve. However, competitors might edge it out with more modern electronics or better temperature ranges depending on the model. Deciding between these often comes down to what your system specifically needs—whether that’s simplicity and durability or advanced control features.

Positive Features That Make a Difference

• Quiet Operation: Runs with minimal noise, which is great for noise-sensitive environments.
• Three-Speed Settings: Offers flexibility to adjust flow rates depending on heating demands.
• Built-In Check Valve: Simplifies installation and prevents backflow without extra parts.
• Durable Cast Iron Housing: Ensures longevity and robustness under typical operating conditions.

Areas for Improvement Worth Considering

• Heavy Weight: The cast iron design makes the pump bulky and somewhat difficult to handle.
• Manual Speed Switching: Requires powering off to change speeds, which is inconvenient in some setups.
• Limited Max Pressure: 145 PSI max might restrict use in higher-pressure systems.
• Temperature Cap: Max operating temperature of 230°F could be limiting for industrial applications.
